I3-1115G4 CPU Intel Core MINI PC Type C USB3.0 X 4 BOX PC WiFi 6 Gigabit LAN

Product Categories
Newsmay Technology Co.,limited
Contact Now

I3-1115G4 CPU Intel Core MINI PC Type C USB3.0 X 4 BOX PC WiFi 6 Gigabit LAN

Brand Name : OEM/NEWSMAY

Model Number : KC11-1115G4

Certification : Rohs CE

Place of Origin : shenzhen, China

MOQ : 50pcs

Price : $255.00

Payment Terms : T/T, L/C

Supply Ability : 20000pcs/Month

Delivery Time : 35days for batch, 5 days for sample

Packaging Details : Gift Box/Carton

Model : KC11-1115G4

CPU : Tiger Lake i3-1115G4

GPU : Intel® UHD Graphics

MEMORY : 2 * SO-DIMM DDR4-2666

SSD : M.2 2280 SATA SSD, NVME SSD

HDD : 1 x 2.5" SATA HDD or SSD

Material : Grey Color Metal case

Dimension : 13.8 x 13.8 x 4.6CM

Power : DC19V3.42A

Didplay : HDMI2.0, DP1.4, Type-C

USB3.0 : USB3.0 x 4

Type-C : Type-C x 1

WiFi : WiFi 6 or WiFi 5/2.4G

LAN : Gigabit LAN

Contact Now

i3-1115G4 CPU intel Core MINI PC Type-C USB3.0 x 4 BOX PC WiFi 6 Gigabit LAN

Main Feature:

  • Powered by the Intel® 11th Generation Intel® Core™ Processors Tiger lake i3-1115G4
  • Support 2 x SO-DIMM DDR4-2666
  • Intel® UHD graphics
  • WiFi 802.11ac
  • Two storage devices for added flexibility (1 x 2.5" SATA3 HDD + 1 x M.2 2280 SATA/NVME SSD)
  • 3 x display (HDMI + DP + Type-C)
  • Smooth and ultra-high resolution 4K@60Hz 10-bit playback on HDMI and DisplayPort
  • Rich USB port meet the daily use and special project
  • Support VESA KIT for 70 x70 or 100 x 100mm hole monitor
  • Dimension: 138*138*46mm
  • Pictures:

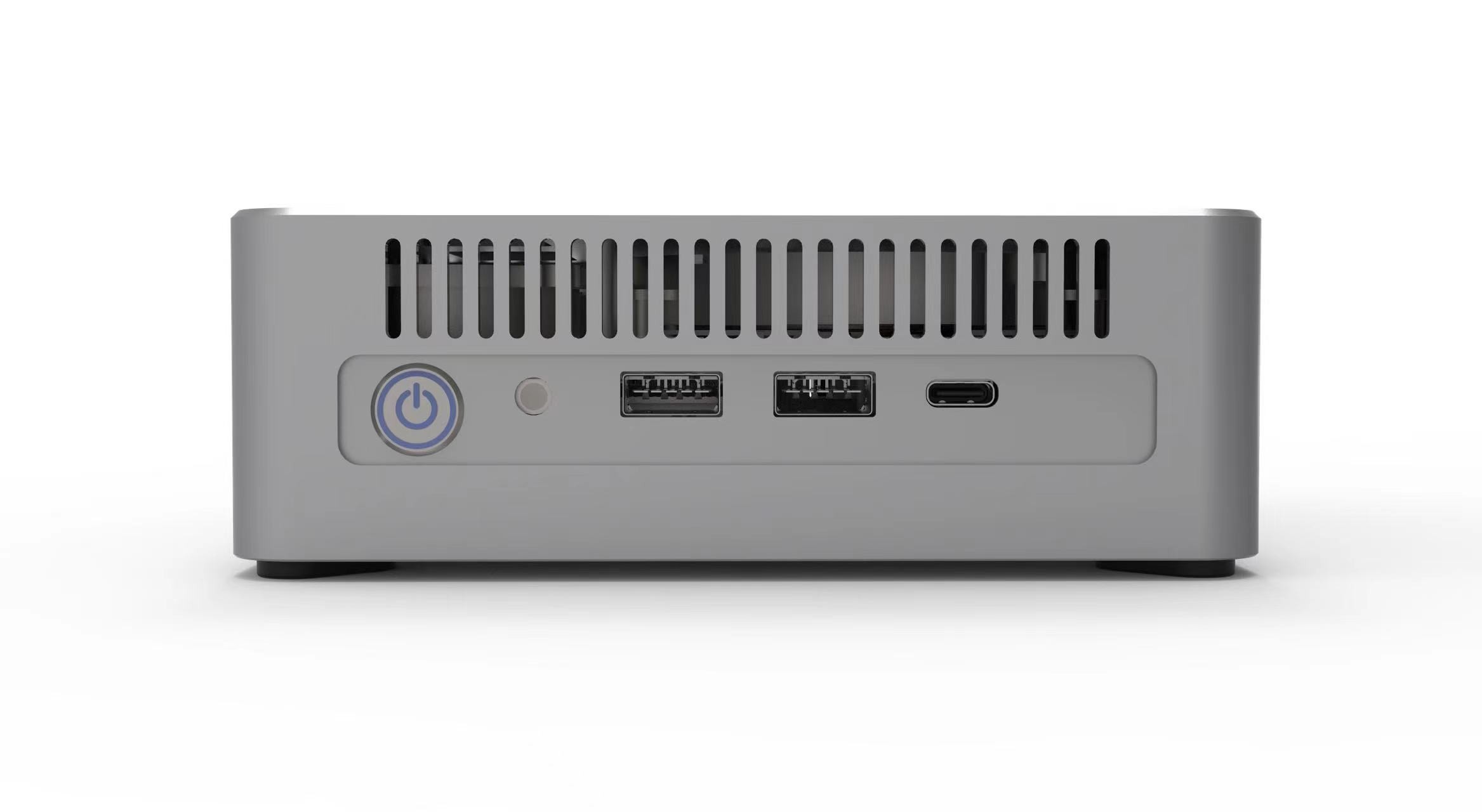

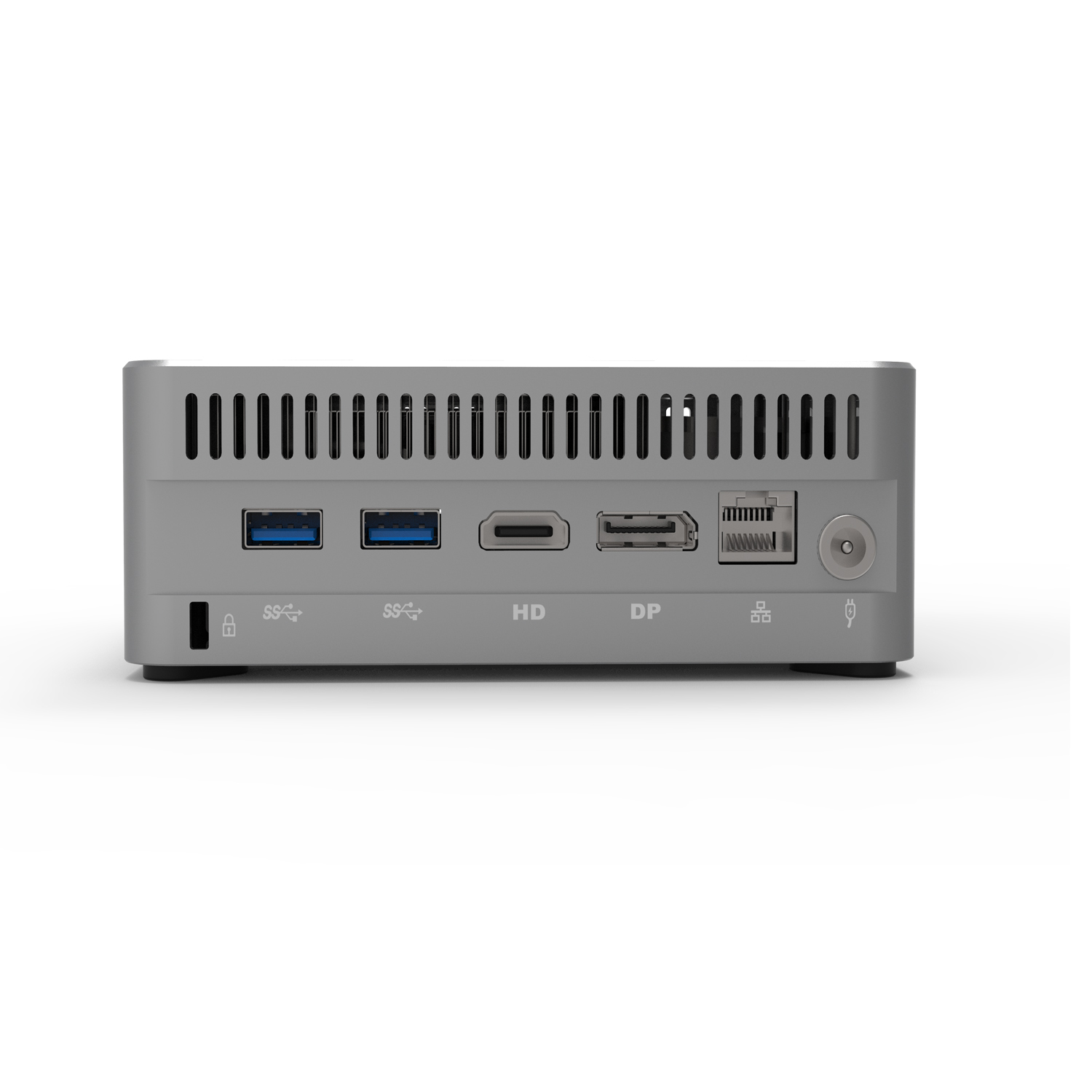

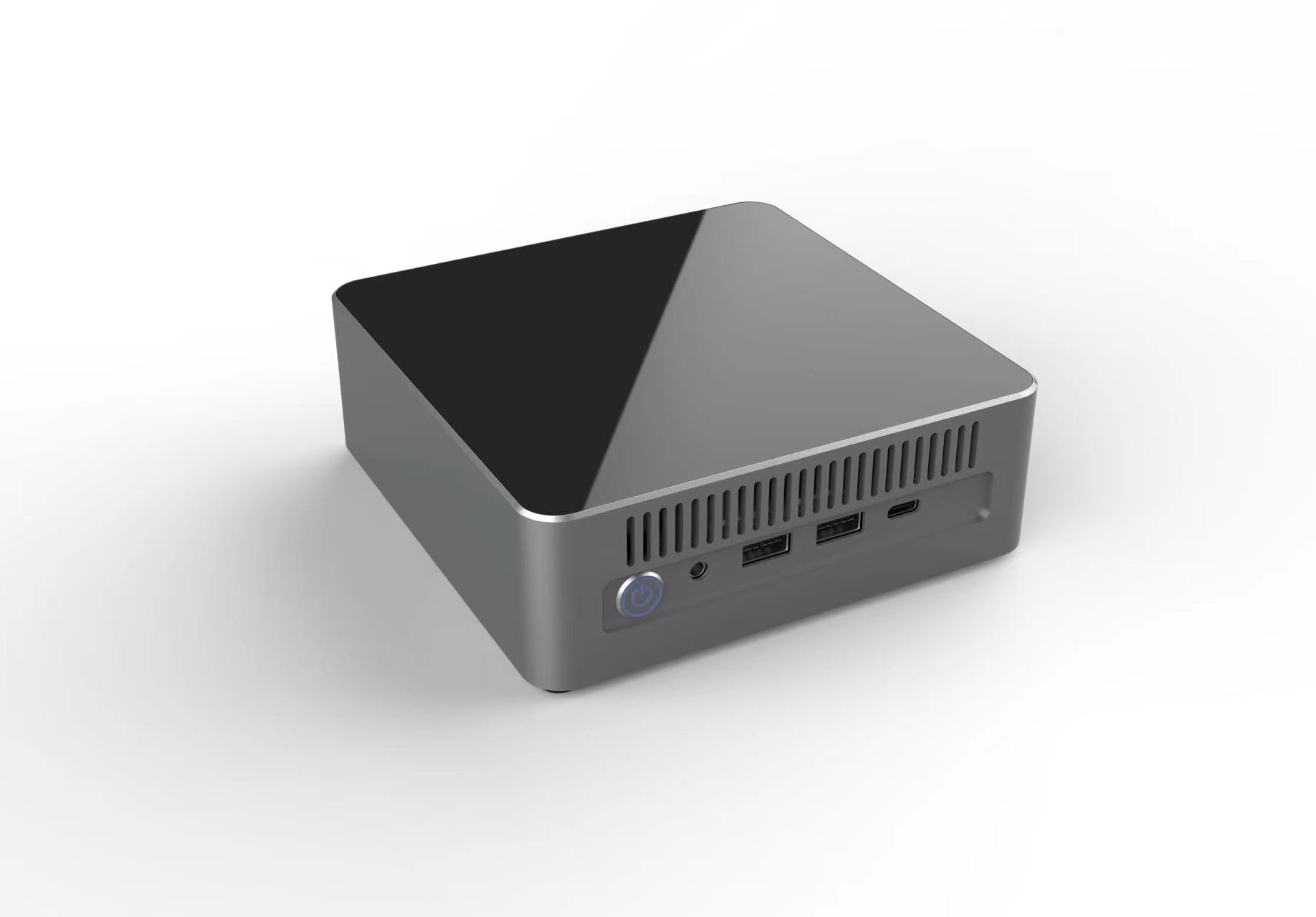

I3-1115G4 CPU Intel Core MINI PC Type C USB3.0 X 4 BOX PC WiFi 6 Gigabit LAN

I3-1115G4 CPU Intel Core MINI PC Type C USB3.0 X 4 BOX PC WiFi 6 Gigabit LAN



I3-1115G4 CPU Intel Core MINI PC Type C USB3.0 X 4 BOX PC WiFi 6 Gigabit LAN

SPECS SHEET:

Type Descriptions
PROCESSOR Intel® Core™ Tiger Lake-U
i3-1115G4 ( Quad Core, Frequency 2.0GHz ~3.7GHz)
i5-1135G7 ( Quad Core,Frequency 2.4GHz ~4.2GHz)
i7-1165G7 ( Quad Core, Frequency 2.8GHz ~4.7GHz)
GPU
Intel® Iris® Xe Graphics or i5 &i7
MEMORY 2x SO-DIMM DDR4-2666/3200
max support 64GB
VIDEO OUTPUT 1 * HDMI2.0 (max support 4096x2304@60Hz)
1* DP(max supprot 4K 4096x2304@60Hz)
1* type-C support display
AUDIO and MIC Audio/MIC jack*1 + MIC*1
ETHERNET LAN: Realtek 8111F chipset,Gigabit LAN,
WIFI: M.2 2230 PCIe slot
STORAGE INTERFACE a. M.2 2280 SSD(support NVME)
b. 2.5" SATAIII SSD/HDD
FRONT PANEL Power Button
MIC /Audio port
USB3.0 * 2
Type-C * 1(support display)
BACK PANEL RJ45 LAN *1
HDMI 2.0 *1
DP * 1
USB3.0 *2
DC IN
POWER Input:100- 240V AC
Output: 19V3.42A DC
ACCESSORIES
Quick User Guide,AC Adapter,HDMI cable, VESA mount
VESA mount Support(70*70/100*100mm)
SIZE Chassis:138*138*46mm
CHASSIS MATERIAL Metal
OS SUPPORT WIN10/WIN11
